LS212

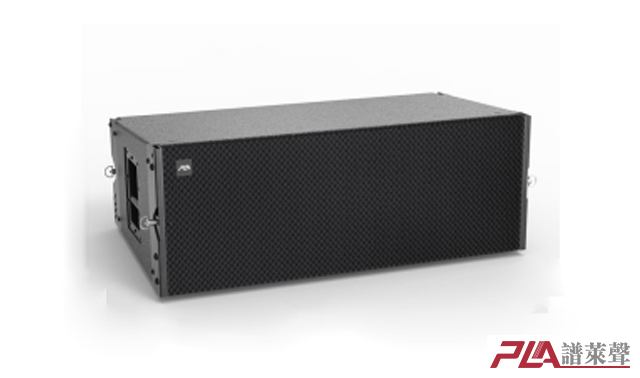

LS212 01.jpg



ApplicationFeature
Touring PerformanceLarge three-way drive three-way frequency system, equipped with WPE wave diameter isometric sound guide
Stadium

Middle and high frequency coaxial structure, so that the sound image is accurate

Theatre

All neodymium high sensitivity unit,great dynamic margins


With WCT (Wavefront Coupling Technology)




Technical specification

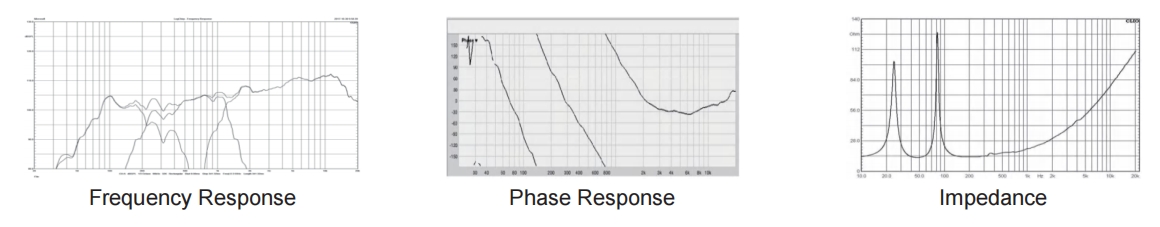

Frequency Respond50 Hz ~ 18 kHz(±3 dB)；40 Hz ~ 20 kHz(-10 dB)
Nominal directivity(-6dB)100°(H),7.5°(V Adjustable)
Sensitivity(@1w/1m)HF:113 dB SPL MF:105 dB SPL LF:100 dB SPL
PoweratingHF/MF/LF:160/350/800 W
ImpedanceHF/MF/LF:16/16/12 ohm
Maximum SPL

HF:135/145 dB SPL peak

MF:130/140 dB SPL peak

LF:129/139dB SPL peak


Transducers

HF:2x3" Phase Correction compression driver

MF:1x10" All Condition Woofer Midrange

LF:2x12"All Condition Woofer



Physical data

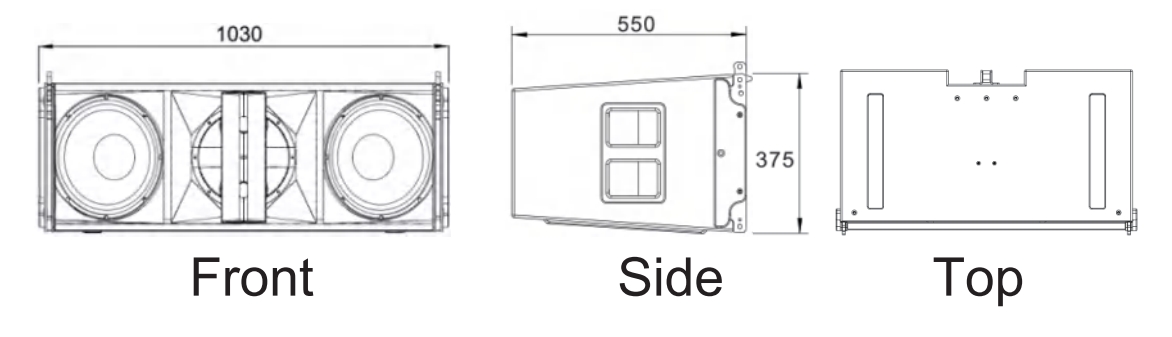

Dimensions1000x550x367mm
Weight63kg
ConnectorsWP7*2,Neutrik NL8*2
Speaker Cables

WP7:1-2+...LF,3-4+...MF, 5-6+...HF

NL8:1+1-...LF,2+2-...MF,3+3-...HF,4+4-...NC

MaterialImported multi-plywood Environmentalwaterproof and anti corrosion coatings
FinshBlack Polyurea paintings
Cover

Black epoxy mesh grille with acoustically reticulated cloth

Angles0、1、2、3、4、5、6、7.5°Adjustable
