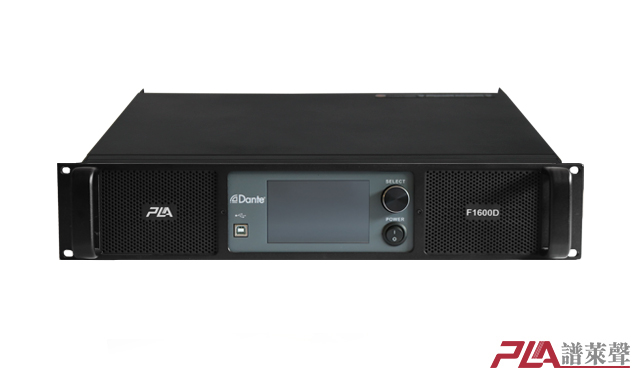

F1600D

High power, multi-channel: F1600D, four channels

Features:

1、DANTE、AES/EBU、 network audio 、analog input l

2、Network TCP/IP control, can realize the management of multiple  devices

3、Remote switch on/off

4、 Using 4.3-inch IPS capacitive touch screen

5、Built-in DSP digital processor, 48k/24bit

6、 Support a variety of connection methods: USB, TCP/IP, RS232

7、 RS485 and third-party open interfaces

8、Real-time remote monitoring of the amplifier's working status

9、Recognize the amplifier on site through software

10、Support bridge and matrix mode free switching

11、 Input sensitivity is adjustable in three steps 0dBu/6dBu/12dBu,  software or color  LCD setting

12、 Fir function is standard, supporting 4×2048 Taps

13、Constant voltage and constant resistance output  mode setting: 100V、70V、8Ω、4Ω

14、Software control, can simultaneously control the media matrix,  professional processor

15、Wide voltage operation 180-264VAC, energy-saving power supply  design, with power factor correction technology

16、With independent alarm function, fault or improper operation will  send out an alarm

Technical parameters:

four × 800W/8 Ω four channel

four × 1600W/4 Ω four channel

four × 2400W/2 Ω four channel

two × 3200W/8 Ω bridge stereo

two × 6000W/4 Ω bridge stereo

two × 8000W/2 Ω bridge stereo

two × 3200W 70V/100V constant voltage output

Frequency response (1W, 8 Ω): 20Hz-20kHz ± 0.5dB

THD+N: ≤0.05%(Ratedpower,4Ω/kHz)

IMD: ＜0.06%

SNR(12dBu,1kHz): ≥95dB

Optional gain: 23,26,29,32,35,38,41,44dB

Cooling system: Airflow from front to back, Forced cooling

Input connectors: XLR

Input impedance: 4xSpeakon；Terminal block

Output connectors: USB/485

Power Input: 100-260V~47-63Hz

Dimensions: 483x377x88mm

Weight:14kg
