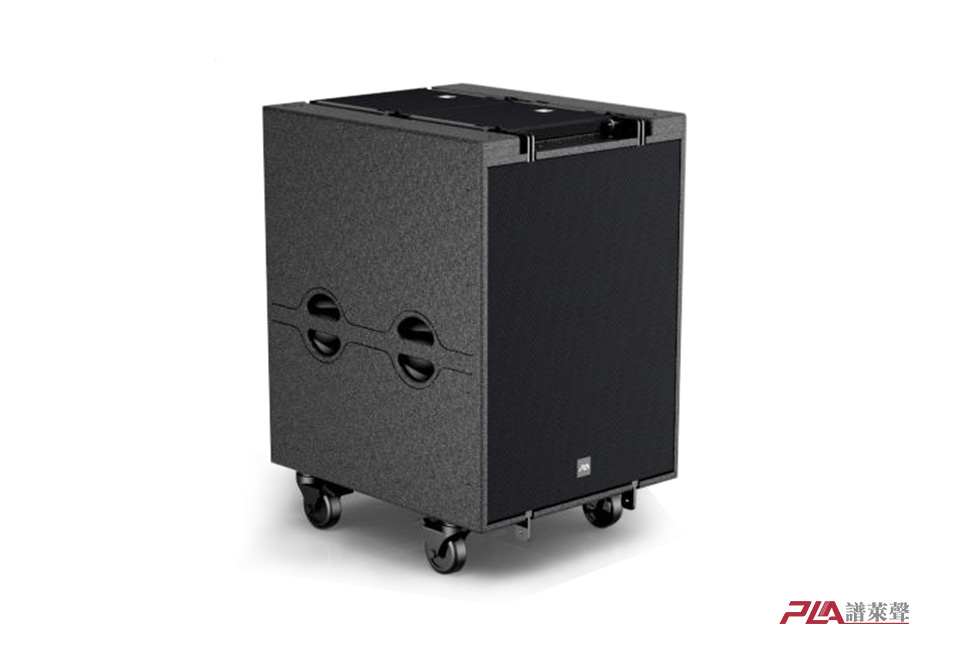

LS18P

Applications	Feature
Small FOH Stage Monitor Phase Response Near-Field Sound	Extremely compact , Small enclosure, light weight Used with LS10 line array speakers Hanging, stacking, and supporting with LS10 to form an active system for various applications

Technical parameters

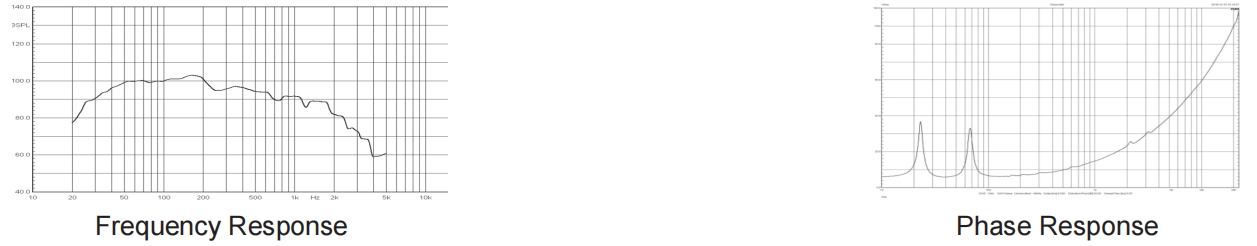

Frequency response	28Hz~250Hz(±3dB )
Nominal directivity(-6dB)	Omnidirectional
Maximum SPL	126dB/136 dB SPL peak
Transducers	LF:1x18" All Condition Woofer
Power Rating	2000W
Power requirement	200- 240V ~ 50-60Hz
THD+N	0.82%(1kHz,Power Rating4Ω)
SNR	104dB
Output electric circuit	Class D circult
Cooling method	Airflow from back to front, forced cooling

Physical data

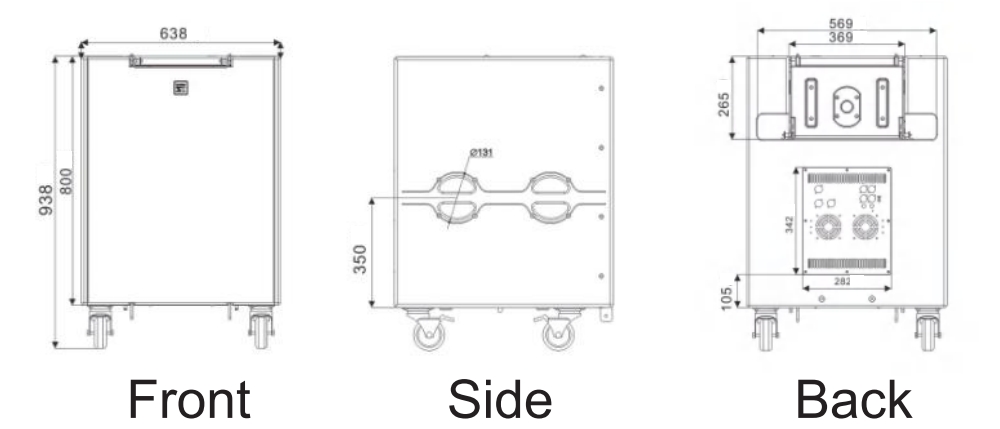

Dimensions	638x700x938mm
Weight	70Kg
Connectors	XLR,(POWER CON)NEUTRIK NL4 ,USB
Speaker Cables	1+1-
Materials	Imported multi-plywood Environmental waterproof and anti corrosion coatings
Finish	Black Polyurea paintings
Grille	Black epoxy mesh grille with acoustically reticulated cloth
Grille	DPR(Double Perforation Rate )technology design, in which theperforation rate of the middle and high transmission area ismore than 90%,Greatly improves the sound transmissionefficiency and reduces the acoustic crosstalk of the surfacegrid.
Angles	0、- -5° adjustable
