F13000

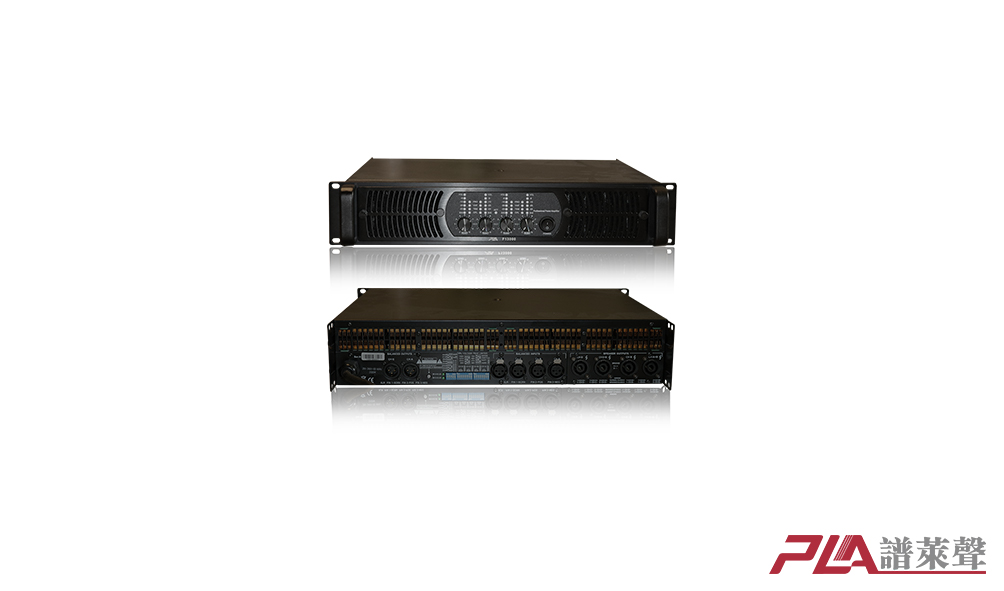

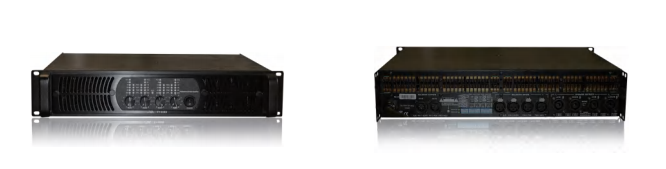

Four channel professional amplifier: F13000


Features:

  1.  High power, multi-channel: F13000, four-channel, 4x2200W/4Ω high power outputs.

  2.  High flexibility: A box, four channels connected to the monitor, line array, two-way  or three-way system, can greatly enhance the efficiency, flexibility  and cost-effective, neighboring channels can be bridged to 2 or 3-channel operation.

  3.  Sound quality guarantee: The F13000 amplifier not only performs flawlessly, but is also durable  and durable.and even more efficient.

  4.  Standardized switching power supplies: Stabilized power output in the event of input voltage shortages.

  5.  High-performance heat dissipation system

  6.  Adjustable parameters

  7.  XLR input connection

  8.  Durable terminal block or Speakon output connection

  9.  Full protection and warning system


four × 1300W/8 Ω stereo

four × 2200W/4 Ω stereo

two × 4400W/2 Ω stereo

two × 4400W/8 Ω bridging

two × 48000W/4 Ω bridging


Technical parameters:

Frequency response: 20 Hz~25 kHz ± 0.5 dB

Total harmonic distortion (1kHz, full power 4 Ω): 0.1%

Signal to noise ratio: 98 dB

Optional Power gain (1kHz, 8 Ω): 23.26.29.32.35.38.41.44dB


Connection method:

Input method: 3-pinXLR, balanced

Input impedance: 20 k Ω balanced/10 k Ω unbalanced

Output Connections: Spoken Connectors (Neutrik)

Current requirement: 200-240V~50-60 Hz

Minimum voltage requirement: 180-260V~50-60 Hz

Size: 483x377x88mm

Weight: 13kg
