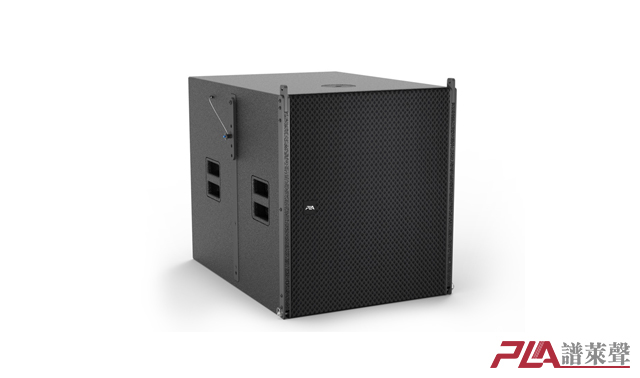

LS110S


Applications

Feature


Touring performance

Small enclosure, light weight

Small volume inverted phase combined with preamplifier cabinet design

3" Voice Coil High Transient Woofer

Dual 15-inch rubber-rimmed neodymium-iron-boron active subwoofers

Used with 1-4 LS110 line array speakers

With hanging parts, can be stacked, can be suspended

Physical Data Same as LS110

Theatre

Church

Multipurpose hall


Technical parameters

Frequency response38 Hz-200 Hz(+3dB)；30 Hz-320 Hz(-10dB)
Nominal directivity(-6dB)

Omnidirectional


Sensitivity (@1w/1m)

100dB SPL


Power Rating1000W

Impedance8ohm
Maximum SPL

130dB/140 dB SPL peak


Transducers

LF:2x15" All Condition Woofer


Physical data

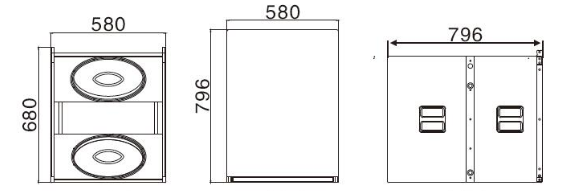

Dimensions

580x796x680mm


Weight60Kg
Connectors

WP4*2,NEUTRIK NL4MP*2


Speaker CablesWP4:1-2+ NL4:1+1-
MaterialImported multi-plywood Environmental waterproof and anti corrosion coatings
Finsh

Black polyurea paintings


Grille

Black epoxy mesh grille with acoustically reticulated cloth

Angles

5、0、-5、-10°Adjustable
